How to measure a pipe reducer?

As a reputable supplier of Pipe Reducers, I understand the critical importance of accurate measurement in the piping industry. Whether you're involved in a large - scale industrial project or a small - scale plumbing job, getting the measurements of a pipe reducer right is the first step towards a successful installation. In this blog, I'll guide you through the process of measuring a pipe reducer, sharing valuable insights and practical tips that have been refined through years of experience in the field.

Understanding Pipe Reducers

Before diving into the measurement process, it's essential to have a clear understanding of what a pipe reducer is. A pipe reducer is a fitting used in piping systems to connect two pipes of different diameters. There are two main types: concentric reducers and eccentric reducers. Concentric reducers have a centered bore, which means the centerlines of the larger and smaller ends are aligned. They are commonly used in applications where fluid flow needs to be centered, such as in vertical pipelines. Eccentric reducers, on the other hand, have an offset bore, and they are often used in horizontal pipelines to prevent the accumulation of air or sediment.

Tools Required for Measuring

To measure a pipe reducer accurately, you'll need a few basic tools:

1. Tape Measure: A flexible tape measure is useful for measuring the outer diameters of the large and small ends of the reducer. Make sure the tape measure is long enough to wrap around the pipe.
2. Vernier Caliper: This precision tool can provide more accurate measurements, especially for smaller - sized pipe reducers. It can measure both the outer and inner diameters with high precision.
3. Depth Gauge: If you need to measure the length of the reducer or the depth of any internal features, a depth gauge will come in handy.

Measuring the Outer Diameters

The first step in measuring a pipe reducer is to determine the outer diameters of the large and small ends.

1. Large End Measurement: Wrap the tape measure around the large end of the reducer. Ensure that the tape measure is parallel to the end face of the reducer and pulled tight to get an accurate measurement. If you're using a vernier caliper, place the jaws around the outer edge of the large end and read the measurement on the scale. Record this measurement as the large outer diameter (OD1).
2. Small End Measurement: Repeat the same process for the small end of the reducer. Measure the outer diameter using either the tape measure or the vernier caliper and record it as the small outer diameter (OD2).

Measuring the Wall Thickness

The wall thickness of a pipe reducer is an important parameter, especially when it comes to determining the strength and durability of the fitting. To measure the wall thickness:

1. Using a Vernier Caliper: Open the jaws of the vernier caliper and insert them into the inside of the reducer at the large end. Measure the distance from the inner surface to the outer surface. Repeat this process at several points around the circumference to ensure uniformity. Record the average value as the wall thickness at the large end (WT1).
2. Small End Wall Thickness: Do the same for the small end of the reducer. Measure the wall thickness at multiple points and calculate the average. Record this value as the wall thickness at the small end (WT2).

Measuring the Length

The length of the pipe reducer is another crucial measurement.

1. Overall Length: Place the pipe reducer on a flat surface. Use a tape measure or a depth gauge to measure the distance from the end face of the large end to the end face of the small end. This measurement is the overall length (L) of the reducer.

Special Considerations for Different Types of Reducers

Concentric Reducers

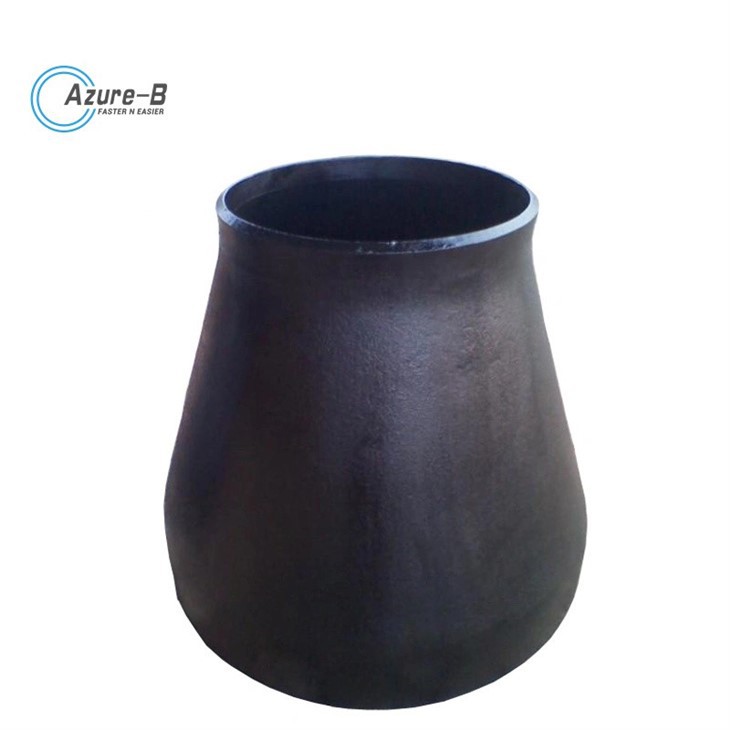

Concentric reducers are relatively straightforward to measure. Since the centerlines of the large and small ends are aligned, the key measurements are the outer diameters, wall thicknesses, and the overall length. When you're in need of high - quality concentric reducers, you can explore our High Quality Buttweld Concentric Reducer options, which are designed to meet the highest industry standards.

Eccentric Reducers

For eccentric reducers, in addition to the standard measurements, you also need to measure the offset. The offset is the distance between the centerlines of the large and small ends. To measure the offset, you can use a straightedge and a caliper. Place the straightedge along the side of the reducer where the offset is most prominent. Then, use the caliper to measure the distance between the center of the large end and the center of the small end as projected onto the straightedge.

Checking for Standards Compliance

Once you've obtained all the measurements, it's important to check if the pipe reducer complies with relevant industry standards. For example, ASME B16.9 Buttweld Concentric Reducer is a widely recognized standard in the United States. Compare your measurements with the specifications outlined in the standard to ensure that the reducer meets the required quality and dimensional tolerances.

Importance of Accurate Measurement

Accurate measurement of pipe reducers is not just about getting the right fit; it's also about ensuring the safety and efficiency of the entire piping system. Incorrectly measured reducers can lead to leaks, pressure drops, and premature failure of the system. By taking the time to measure carefully, you can avoid these issues and ensure a smooth - running piping system.

Conclusion

Measuring a pipe reducer accurately is a skill that requires patience and the right tools. By following the steps outlined in this blog, you can measure the outer diameters, wall thicknesses, length, and other important parameters of both concentric and eccentric reducers. As a Pipe Reducers supplier, we offer a wide range of Buttweld Pipe Reducers that are manufactured to the highest quality standards. If you're in the market for pipe reducers or need further assistance with measurement and selection, don't hesitate to contact us for a detailed discussion and procurement. We're here to help you find the perfect solution for your piping needs.

References

• ASME B16.9 - Factory - Made Wrought Buttwelding Fittings
• Piping Handbook, 8th Edition, by George H. Nayyar
