Can 5D Bend be used for stainless steel materials?

Can 5D Bend be used for stainless steel materials?

In the realm of pipe bending, the question of whether 5D bends can be effectively used for stainless steel materials is a topic that garners significant interest. As a 5D bend supplier, I have witnessed firsthand the diverse applications and challenges associated with different materials and bending techniques. In this blog, we will delve into the feasibility, advantages, and considerations of using 5D bends for stainless steel materials.

Understanding 5D Bends

Before we explore the compatibility with stainless steel, let's first understand what 5D bends are. A 5D bend refers to a pipe bend where the centerline radius of the bend is five times the outside diameter of the pipe. This type of bend offers a more gradual curve compared to other bends, such as 3D or 4D bends. The larger radius allows for smoother flow of fluids or gases through the pipe, reducing turbulence and pressure drop. This makes 5D bends particularly suitable for applications where flow efficiency is crucial, such as in oil and gas pipelines, power plants, and chemical processing facilities.

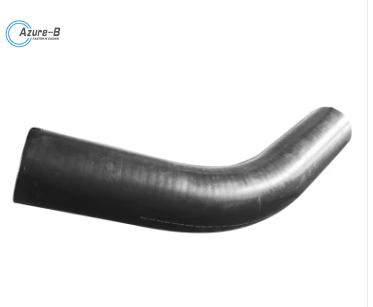

5D Bend are typically produced using various methods, including hot induction bending and cold bending. Hot induction bending involves heating the pipe locally using an induction coil and then applying a bending force to form the desired curve. This method is suitable for producing bends with large radii and is often used for high-quality and precision bends. Cold bending, on the other hand, is a simpler and more cost-effective method that involves bending the pipe at room temperature using mechanical force. However, cold bending may not be suitable for producing bends with large radii or for materials that are difficult to bend.

Compatibility with Stainless Steel

Stainless steel is a popular choice of material for many applications due to its excellent corrosion resistance, high strength, and aesthetic appeal. It is widely used in industries such as food and beverage, pharmaceutical, and architectural. When it comes to using 5D bends for stainless steel materials, there are several factors to consider.

One of the main advantages of using 5D bends for stainless steel is the ability to maintain the integrity of the material during the bending process. Stainless steel is a relatively ductile material, which means it can be bent without cracking or fracturing. However, the bending process can cause changes in the microstructure of the material, which may affect its mechanical properties and corrosion resistance. By using a larger radius bend, such as a 5D bend, the stress on the material during the bending process is reduced, minimizing the risk of damage to the material.

Another advantage of using 5D bends for stainless steel is the improved flow characteristics. As mentioned earlier, the larger radius of the 5D bend allows for smoother flow of fluids or gases through the pipe, reducing turbulence and pressure drop. This is particularly important for applications where the flow of fluids or gases is critical, such as in chemical processing plants or food and beverage production. By using 5D bends, the efficiency of the system can be improved, reducing energy consumption and operating costs.

In addition to the advantages, there are also some considerations when using 5D bends for stainless steel. One of the main considerations is the cost. 5D bends are typically more expensive than other types of bends, such as 3D or 4D bends, due to the larger radius and the more complex manufacturing process. However, the cost of the bend should be weighed against the benefits, such as improved flow characteristics and reduced maintenance costs.

Another consideration is the availability of the material. Stainless steel is a widely available material, but not all grades of stainless steel are suitable for bending. Some grades of stainless steel may be more difficult to bend than others, and the bending process may require special equipment and techniques. It is important to consult with a qualified supplier or manufacturer to ensure that the selected grade of stainless steel is suitable for the intended application and that the bending process is carried out correctly.

Applications of 5D Bends in Stainless Steel

5D bends in stainless steel have a wide range of applications in various industries. Some of the common applications include:

• Oil and Gas Industry: In the oil and gas industry, 5D bends in stainless steel are used in pipelines for transporting crude oil, natural gas, and other fluids. The smooth flow characteristics of the 5D bend help to reduce pressure drop and improve the efficiency of the pipeline system.
• Power Generation: In power plants, 5D bends in stainless steel are used in steam and water pipelines. The high strength and corrosion resistance of stainless steel make it suitable for use in high-temperature and high-pressure environments.
• Chemical Processing: In chemical processing plants, 5D bends in stainless steel are used in pipelines for transporting chemicals and other corrosive fluids. The corrosion resistance of stainless steel helps to prevent the pipes from corroding and leaking, ensuring the safety and reliability of the system.
• Food and Beverage Industry: In the food and beverage industry, 5D bends in stainless steel are used in pipelines for transporting food and beverage products. The smooth surface of stainless steel makes it easy to clean and sanitize, ensuring the hygiene and safety of the products.

Conclusion

In conclusion, 5D bends can be effectively used for stainless steel materials. The larger radius of the 5D bend allows for smoother flow of fluids or gases through the pipe, reducing turbulence and pressure drop. The ability to maintain the integrity of the material during the bending process and the improved flow characteristics make 5D bends a suitable choice for many applications in various industries. However, it is important to consider the cost and availability of the material, as well as the specific requirements of the application, when selecting a 5D bend for stainless steel.

If you are interested in purchasing 5D Bend for your stainless steel application, please feel free to contact us. We are a leading supplier of high-quality 5D bends in stainless steel and other materials, and we can provide you with the best solutions for your needs. Our team of experts can assist you in selecting the right grade of stainless steel and the appropriate bending process to ensure the success of your project.

References

• ASME B31.3 Process Piping Code
• ASTM A312 Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
• API 5L Specification for Line Pipe
