What is the surface finish after 5D Bend?

Hey there! As a 5D Bend supplier, I often get asked about what the surface finish is after a 5D Bend. Well, let's dive right into it and break it down.

First off, what the heck is a 5D Bend? A 5D Bend is a type of pipe bend where the centerline radius of the bend is five times the outside diameter of the pipe. It's used in a whole bunch of industries, like oil and gas, power generation, and even in some high - end plumbing systems. The reason it's so popular is that it provides a smooth flow path for fluids or gases, reducing pressure drop and turbulence.

Now, onto the surface finish. After a 5D Bend is made, the surface finish can vary depending on a few factors. One of the main factors is the manufacturing process. There are different ways to make 5D Bends, and each method can leave a distinct surface finish.

One common method is hot induction bending. Hot Induction Pipe Bends are created by heating a specific section of the pipe using an induction coil and then bending it while it's hot. This process can result in a relatively smooth surface finish, but there might be some minor scale or oxidation on the surface. The scale is basically a thin layer of oxidized metal that forms during the heating process. Usually, this scale can be removed through additional finishing processes like shot blasting or pickling. Shot blasting involves firing small metal beads at the surface of the bend to remove the scale and give it a more uniform texture. Pickling, on the other hand, is a chemical process where the bend is immersed in an acid solution to dissolve the scale.

Another method is the welded pipe bend method. High Quality Welded Pipe Bend is made by welding sections of pipe together to form the bend. The surface finish here can be a bit more complex. At the weld joint, there will be a bead of weld metal. This bead needs to be ground down and smoothed to match the rest of the surface. If not done properly, the weld area can be rough and uneven, which might cause issues in applications where a smooth surface is crucial, like in food or pharmaceutical processing.

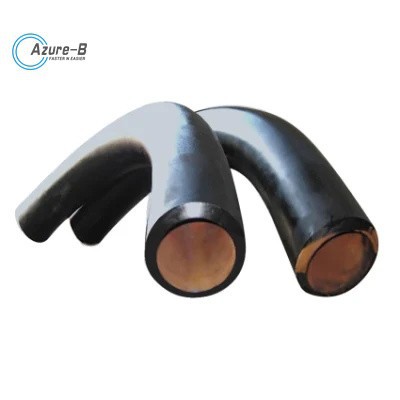

Induction bending is also a great option. Induction Pipe Bends offer a high - quality surface finish in many cases. The induction process allows for precise control of the bending, which can result in a bend with a consistent wall thickness and a smooth surface. However, just like with hot induction bending, there can be some surface oxidation that needs to be addressed.

The material of the pipe also plays a big role in the surface finish. For example, carbon steel pipes are commonly used for 5D Bends. Carbon steel can rust if not properly protected, especially after the bending process. So, after the bend is made, it's often coated with a protective layer like paint, epoxy, or zinc. This not only protects the surface from corrosion but also gives it a more aesthetically pleasing look.

Stainless steel pipes, on the other hand, are more resistant to corrosion. They usually have a shiny, smooth surface finish even after bending. But they still might need some light polishing to remove any minor scratches or marks that occurred during the bending process.

In addition to the manufacturing process and the material, the intended application of the 5D Bend also affects the required surface finish. In some industries, like the semiconductor industry, a super - smooth and clean surface finish is essential. Even the tiniest particle on the surface of the bend can contaminate the semiconductor manufacturing process. So, in these cases, the bends go through multiple levels of finishing, including precision grinding and chemical cleaning.

In the automotive industry, the surface finish might not need to be as perfect. But it still needs to be smooth enough to prevent any sharp edges that could cause injury during installation or use.

As a 5D Bend supplier, we understand the importance of getting the right surface finish for our customers. We have a team of experts who can recommend the best manufacturing process and finishing techniques based on your specific requirements. Whether you need a bend for a high - tech application or a more common industrial use, we've got you covered.

If you're in the market for 5D Bends and are concerned about the surface finish, don't hesitate to reach out. We can provide samples so you can see the quality of our work firsthand. We pride ourselves on delivering high - quality products with the right surface finish for your needs. Contact us to start a conversation about your 5D Bend requirements, and let's work together to find the perfect solution for your project.

References

• Various industry manuals on pipe bending and surface finishing
• Technical papers on hot induction bending and welded pipe manufacturing processes
