What is the effect of fluid cavitation on a 1.5" 90 Degree Elbow?

Fluid cavitation is a complex and often problematic phenomenon that can have significant effects on various components within fluid systems, including 1.5" 90 Degree Elbows. As a supplier of these high - quality elbows, understanding the impact of cavitation is crucial for both us and our customers. In this blog, we will explore what fluid cavitation is, how it affects 1.5" 90 Degree Elbows, and what measures can be taken to mitigate its negative consequences.

What is Fluid Cavitation?

Fluid cavitation occurs when the pressure of a liquid drops below its vapor pressure, causing the formation of vapor bubbles within the liquid. These bubbles are typically created in areas of high - velocity flow or where there are sudden pressure changes. When these bubbles move into regions of higher pressure, they collapse rapidly. This collapse generates intense shockwaves that can cause damage to nearby surfaces.

There are two main types of cavitation: inertial cavitation and non - inertial cavitation. Inertial cavitation is the more destructive form, where the bubbles collapse violently, producing high - energy shockwaves. Non - inertial cavitation involves the oscillation of bubbles without complete collapse, and it is generally less damaging.

How Cavitation Affects 1.5" 90 Degree Elbows

Erosion and Wear

One of the most significant effects of cavitation on 1.5" 90 Degree Elbows is erosion and wear. When the vapor bubbles collapse near the inner surface of the elbow, the shockwaves can cause microscopic pits and craters on the metal surface. Over time, these pits can grow and merge, leading to significant material loss. This erosion can weaken the elbow and reduce its structural integrity, increasing the risk of leaks or even complete failure.

The location of erosion within the elbow is often related to the flow pattern. In a 90 - degree elbow, the flow changes direction abruptly, creating areas of high - velocity flow and pressure gradients. These areas are more prone to cavitation and subsequent erosion. For example, the outer wall of the elbow, where the flow is forced to change direction, is often subjected to higher shear stresses and is more likely to experience cavitation - induced erosion.

Noise and Vibration

Cavitation can also generate significant noise and vibration in the system. The rapid collapse of vapor bubbles produces a characteristic popping or cracking sound, which can be quite loud, especially in systems with high - intensity cavitation. This noise can be a nuisance in industrial settings and may also indicate potential problems with the elbow or the overall fluid system.

In addition to noise, cavitation - induced vibration can cause mechanical stress on the elbow and other components in the system. Prolonged exposure to vibration can lead to fatigue failure of the elbow, as well as loosening of connections and misalignment of other parts. This can further compromise the performance and reliability of the entire fluid system.

Flow Disturbance

Cavitation can disrupt the normal flow of fluid through the 1.5" 90 Degree Elbow. The presence of vapor bubbles can change the density and viscosity of the fluid, affecting its flow characteristics. This can lead to uneven flow distribution, increased pressure drop, and reduced efficiency of the system. In some cases, severe cavitation can even cause flow blockages, which can lead to system shutdowns and costly repairs.

Mitigating the Effects of Cavitation on 1.5" 90 Degree Elbows

Material Selection

Choosing the right material for the 1.5" 90 Degree Elbow can significantly reduce the impact of cavitation. Materials with high hardness and good resistance to erosion, such as stainless steel or alloy steel, are often preferred. These materials can withstand the shockwaves generated by bubble collapse better than softer materials, reducing the rate of erosion.

For example, stainless steel elbows are known for their excellent corrosion resistance and high strength. They can resist the effects of cavitation - induced erosion for longer periods, making them a popular choice in applications where cavitation is a concern.

Design Optimization

The design of the 1.5" 90 Degree Elbow can also play a crucial role in mitigating cavitation. Elbows with smooth inner surfaces and gradual transitions can reduce the formation of high - velocity flow regions and pressure gradients, minimizing the likelihood of cavitation. Additionally, using elbows with larger radii of curvature can help to reduce the flow disturbances caused by the sudden change in direction, further reducing the risk of cavitation.

Some advanced designs also incorporate features such as flow straighteners or diffusers to improve the flow characteristics and reduce the potential for cavitation. These features can help to distribute the flow more evenly and reduce the formation of high - pressure and low - pressure regions within the elbow.

System Pressure Management

Proper management of the system pressure is essential for preventing cavitation. Maintaining a stable and appropriate pressure throughout the system can help to ensure that the pressure of the fluid never drops below its vapor pressure. This can be achieved through the use of pressure regulators, pumps, and other control devices.

Regular monitoring of the system pressure and flow rate can also help to detect early signs of cavitation. If the pressure drops below a certain threshold or if there are sudden changes in the flow rate, it may indicate the presence of cavitation. Taking corrective actions, such as adjusting the system settings or replacing worn - out components, can prevent further damage to the 1.5" 90 Degree Elbow and the entire fluid system.

Our Product Offerings

As a leading supplier of 1.5" 90 Degree Elbows, we offer a wide range of products to meet the diverse needs of our customers. Our elbows are made from high - quality materials and are designed to withstand the harsh conditions of various fluid systems.

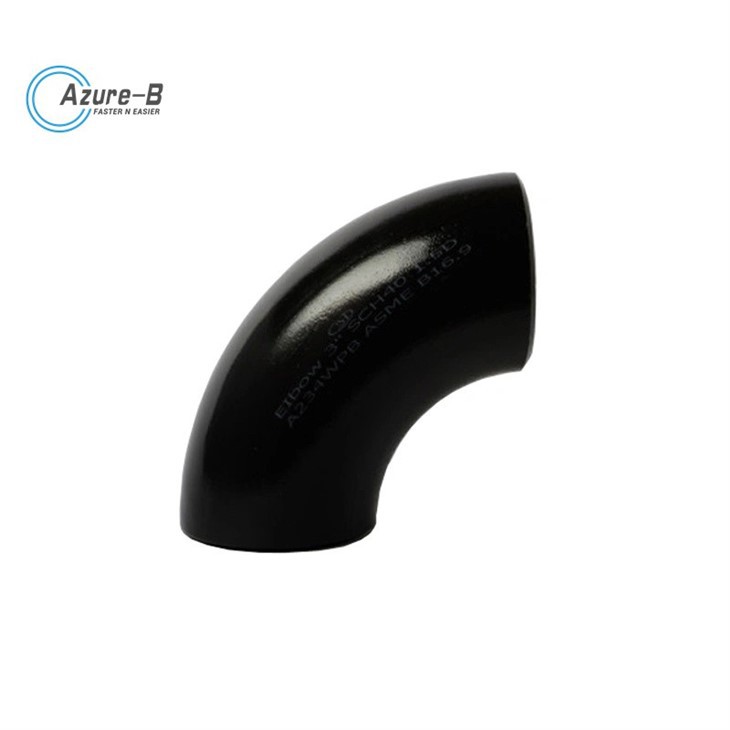

In addition to our standard 1.5" 90 Degree Elbows, we also offer related products such as [Butt Weld 180 Deg Pipe Elbow](/carbon - steel - elbow/butt - weld - 180 - deg - pipe - elbow.html), [Welded 90 Deg Elbow](/carbon - steel - elbow/welded - 90 - deg - elbow.html), and [Steel 90 Deg Elbow](/carbon - steel - elbow/steel - 90 - deg - elbow.html). These products are engineered to provide reliable performance and long - term durability, even in the presence of cavitation.

Conclusion

Fluid cavitation can have a significant impact on 1.5" 90 Degree Elbows, causing erosion, noise, vibration, and flow disturbances. However, by understanding the causes and effects of cavitation and taking appropriate mitigation measures, such as material selection, design optimization, and system pressure management, the negative consequences of cavitation can be minimized.

As a trusted supplier of 1.5" 90 Degree Elbows and related products, we are committed to providing our customers with high - quality solutions that can withstand the challenges of fluid cavitation. If you are in the market for these products or have any questions about how to deal with cavitation in your fluid system, we encourage you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to assist you in finding the best solutions for your needs.

References

1. Brennen, C. E. (1995). Cavitation and bubble dynamics. Oxford University Press.
2. Young, D. F. (1989). Cavitation. McGraw - Hill.
3. Tullis, J. P. (1989). Hydraulics of pipelines: pumps, valves, cavitation, transients. John Wiley & Sons.
