What are the flow characteristics of ASME B16.9 Unequal Tee?

Hey there! As a supplier of ASME B16.9 Unequal Tee, I've been getting a lot of questions about the flow characteristics of these tees. So, I thought I'd put together this blog post to share some insights.

First off, let's talk about what an ASME B16.9 Unequal Tee is. It's a type of pipe fitting that has three openings, with one of the branch openings being smaller in diameter than the other two. These tees are used in piping systems to change the direction of flow and to distribute the fluid or gas among different branches.

Flow Distribution

One of the key flow characteristics of an ASME B16.9 Unequal Tee is how it distributes the flow. When fluid or gas enters the tee through the main run, it has to split into two paths: one going through the larger branch and the other through the smaller branch.

The flow rate in each branch depends on several factors, such as the diameter ratio of the branches, the pressure difference across the tee, and the viscosity of the fluid. In general, more flow will go through the larger branch because it offers less resistance. However, the exact distribution can be quite complex to predict.

For example, if you have a tee with a large difference in branch diameters, say a main run of 8 inches and a larger branch of 6 inches and a smaller branch of 2 inches, most of the flow will be directed towards the 6 - inch branch. But the amount of flow going to the 2 - inch branch can still be significant, especially if there's a high - pressure drop across the tee.

Pressure Drop

Pressure drop is another important flow characteristic. When fluid flows through a tee, it experiences a loss of pressure due to the change in flow direction and the additional resistance caused by the branch connections.

The pressure drop in an unequal tee is affected by the same factors as flow distribution. A larger diameter ratio between the branches usually leads to a higher pressure drop. This is because the sudden change in cross - sectional area as the fluid enters the branches causes more turbulence and energy losses.

To minimize pressure drop, it's important to select the right size of the unequal tee for your piping system. If the tee is too small for the flow rate, the pressure drop will be excessive, which can lead to reduced efficiency and increased operating costs.

Turbulence

Turbulence is a common phenomenon in fluid flow through tees. When the fluid splits at the tee junction, it creates eddies and swirls, which result in turbulent flow. Turbulence can have both positive and negative effects.

On the positive side, turbulence can help in mixing different fluids if you're using the tee for that purpose. For example, in a chemical processing plant, a tee can be used to mix two different chemicals, and the turbulence can enhance the mixing efficiency.

On the negative side, excessive turbulence can cause erosion and corrosion of the tee walls. The high - velocity fluid particles in the turbulent flow can impact the inner surface of the tee, wearing it down over time. This can lead to leaks and failures in the piping system.

Effects of Fluid Properties

The properties of the fluid also play a crucial role in the flow characteristics of an ASME B16.9 Unequal Tee. If the fluid is highly viscous, like heavy oil, it will flow more slowly and be more resistant to changes in direction. This means that the flow distribution and pressure drop will be different compared to a less viscous fluid, such as water.

For viscous fluids, the pressure drop is usually higher because the fluid has a harder time flowing through the tee. Also, the flow is less likely to be evenly distributed among the branches, as the fluid tends to stick to the walls of the pipe and is more affected by the shape of the tee.

Applications and Their Impact on Flow

The application of the unequal tee in a piping system can also influence its flow characteristics. For instance, in a water supply system, the flow is relatively steady and the pressure is usually maintained within a certain range. In this case, the flow distribution and pressure drop can be predicted more accurately.

However, in a steam system, the situation is more complicated. Steam is a compressible fluid, and its density changes with pressure and temperature. This means that the flow characteristics can vary significantly depending on the operating conditions. For example, if the steam is at a high - pressure and high - temperature state, it will flow more easily through the tee, but the pressure drop can still be substantial due to the high - velocity flow.

Importance of Quality in Flow Performance

As a supplier of ASME B16.9 Unequal Tees, I know how important it is to provide high - quality products. A well - manufactured tee will have smooth inner surfaces, which can reduce turbulence and pressure drop.

The welding quality of the tee is also crucial. Poor welding can create rough spots inside the tee, which can disrupt the flow and cause additional pressure losses. That's why we at our company (I'm just speaking as a general supplier here) take great care in the manufacturing process to ensure that our tees meet the highest standards.

Related Products

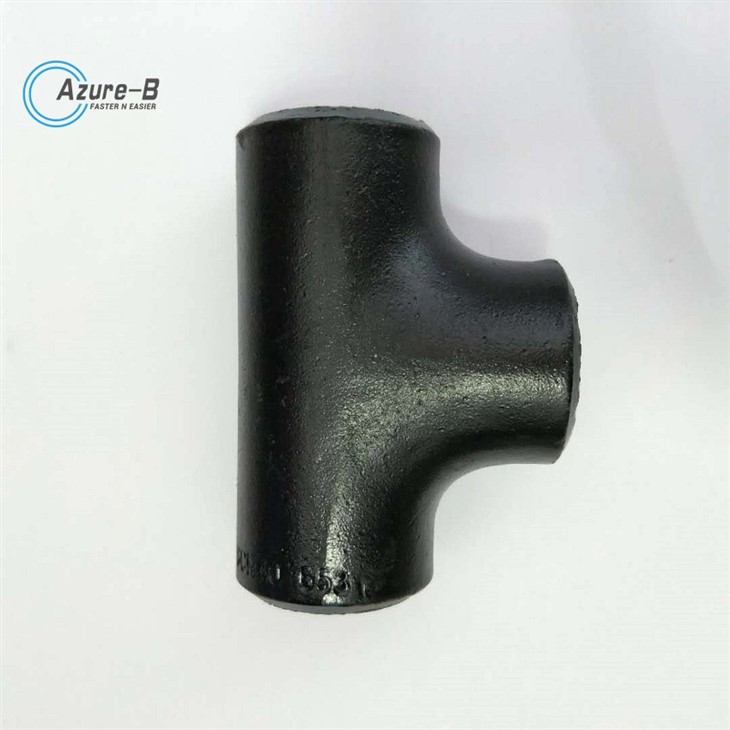

If you're interested in other types of pipe fittings related to unequal tees, you might want to check out our Butt Weld Reducing Tee and Steel Reducing Tee Pipe Fittings. These products also play important roles in piping systems and have their own unique flow characteristics. And if you need an equal tee, our Buttweld Equal Tee is a great option.

Conclusion

In conclusion, the flow characteristics of ASME B16.9 Unequal Tees are complex and depend on many factors. Understanding these characteristics is crucial for designing efficient piping systems. Whether you're dealing with water, oil, steam, or any other fluid, choosing the right tee and ensuring its proper installation can make a big difference in the performance of your system.

If you're in the market for high - quality ASME B16.9 Unequal Tees or any other related pipe fittings, I'd encourage you to reach out to us. We're here to help you select the right products for your specific needs and answer any questions you might have. Let's work together to build a reliable and efficient piping system.

References

• Crane Technical Paper No. 410, Flow of Fluids Through Valves, Fittings, and Pipe
• ASME B16.9 Standard for Factory - Made Wrought Buttwelding Fittings
