Are ASME B16.5 Flanges compatible with other piping components?

Are ASME B16.5 Flanges compatible with other piping components?

As a supplier of ASME B16.5 flanges, I often encounter questions from customers regarding the compatibility of these flanges with other piping components. This topic is of utmost importance in the piping industry, as ensuring proper compatibility is crucial for the safety, efficiency, and longevity of piping systems. In this blog post, I will delve into the factors that determine the compatibility of ASME B16.5 flanges with other piping components and provide insights based on my experience in the field.

Understanding ASME B16.5 Flanges

ASME B16.5 is a standard developed by the American Society of Mechanical Engineers (ASME) that covers pipe flanges and flanged fittings in sizes NPS 1/2 through NPS 24, in pressure classes 150, 300, 400, 600, 900, 1500, and 2500. These flanges are widely used in various industries, including oil and gas, chemical, power generation, and water treatment, due to their standardized dimensions, reliable performance, and ease of installation.

ASME B16.5 flanges are available in different types, such as weld neck flanges, slip-on flanges, socket weld flanges, lap joint flanges, threaded flanges, and blind flanges. Each type has its own unique features and applications, and the choice of flange type depends on factors such as the piping system's operating conditions, fluid characteristics, and installation requirements.

Compatibility Factors

When considering the compatibility of ASME B16.5 flanges with other piping components, several factors need to be taken into account:

1. Dimensions and Tolerances

One of the primary factors affecting compatibility is the dimensions and tolerances of the flanges and other piping components. ASME B16.5 provides precise dimensional requirements for flanges, including outside diameter, bolt circle diameter, number and size of bolt holes, and face-to-face dimensions. Other piping components, such as pipes, valves, and fittings, must have compatible dimensions to ensure a proper fit and alignment with the flanges.

For example, the inside diameter of a pipe must match the bore size of the flange to allow for a smooth flow of fluid. Similarly, the bolt holes in the flange and the mating component must be aligned correctly to enable the use of bolts for connection. Any deviation from the standard dimensions can lead to installation difficulties, leaks, and reduced performance of the piping system.

2. Pressure and Temperature Ratings

Another critical factor is the pressure and temperature ratings of the flanges and other piping components. ASME B16.5 specifies the pressure-temperature ratings for different classes of flanges, which indicate the maximum pressure and temperature at which the flanges can safely operate. Other piping components, such as pipes, valves, and fittings, must have similar or higher pressure and temperature ratings to ensure compatibility and prevent failure under operating conditions.

For instance, if a piping system is designed to operate at a high pressure and temperature, the flanges and other components used in the system must be rated for those conditions. Using components with lower ratings can result in leaks, deformation, or even catastrophic failure of the piping system.

3. Material Compatibility

Material compatibility is also essential to ensure the long-term performance and integrity of the piping system. ASME B16.5 flanges are available in a variety of materials, including carbon steel, stainless steel, alloy steel, and nickel-based alloys. The choice of material depends on factors such as the fluid being transported, the operating environment, and the corrosion resistance requirements.

Other piping components, such as pipes, valves, and fittings, must be made of compatible materials to prevent galvanic corrosion, which can occur when two dissimilar metals are in contact in the presence of an electrolyte. For example, if a carbon steel flange is used in a system with stainless steel pipes, a proper corrosion protection measure, such as a gasket or a coating, may be required to prevent galvanic corrosion.

4. Gasket Compatibility

Gaskets are used to create a seal between the flanges and other piping components to prevent leaks. The choice of gasket material depends on factors such as the fluid being transported, the operating pressure and temperature, and the flange surface finish. ASME B16.5 provides guidelines for the selection of gaskets based on the flange class and type.

It is important to ensure that the gasket material is compatible with the flanges and other piping components to prevent gasket failure and leaks. For example, some gasket materials may not be suitable for use with certain fluids or at high temperatures. Therefore, it is crucial to select the appropriate gasket material based on the specific application requirements.

Compatibility with Other Piping Components

ASME B16.5 flanges are designed to be compatible with a wide range of other piping components, including pipes, valves, and fittings. However, it is important to ensure that the components are selected and installed correctly to ensure proper compatibility.

Pipes

ASME B16.5 flanges are typically used in conjunction with pipes that comply with relevant standards, such as ASTM A106 for carbon steel pipes and ASTM A312 for stainless steel pipes. The inside diameter of the pipe must match the bore size of the flange to ensure a proper fit and alignment. Additionally, the pipe wall thickness must be compatible with the flange class and type to ensure the required strength and pressure rating.

Valves

ASME B16.5 flanges can be used to connect valves to the piping system. Valves are available in various types, such as gate valves, globe valves, ball valves, and check valves, and they must have compatible flange dimensions and pressure ratings to ensure a proper connection. It is important to select the appropriate valve type and size based on the specific application requirements, such as the flow rate, pressure, and temperature of the fluid.

Fittings

ASME B16.5 flanges can also be used with various types of fittings, such as elbows, tees, reducers, and couplings. These fittings must have compatible flange dimensions and pressure ratings to ensure a proper connection. Additionally, the fitting material must be compatible with the flange material to prevent corrosion and ensure the long-term performance of the piping system.

Examples of Compatibility

To illustrate the compatibility of ASME B16.5 flanges with other piping components, let's consider a few examples:

Example 1: A Water Supply System

In a water supply system, ASME B16.5 Class 150 flanges can be used to connect carbon steel pipes, gate valves, and elbows. The pipes can be ASTM A106 Grade B carbon steel pipes with a nominal diameter of 4 inches. The gate valves can be ASME B16.34 Class 150 gate valves with flanged ends that match the dimensions of the ASME B16.5 flanges. The elbows can be ASTM A234 WPB carbon steel elbows with flanged ends that are compatible with the ASME B16.5 flanges. A rubber gasket can be used to create a seal between the flanges and other components to prevent leaks.

Example 2: A Chemical Processing Plant

In a chemical processing plant, ASME B16.5 Class 300 flanges can be used to connect stainless steel pipes, ball valves, and reducers. The pipes can be ASTM A312 TP304 stainless steel pipes with a nominal diameter of 6 inches. The ball valves can be ASME B16.34 Class 300 ball valves with flanged ends that match the dimensions of the ASME B16.5 flanges. The reducers can be ASTM A403 WP304 stainless steel reducers with flanged ends that are compatible with the ASME B16.5 flanges. A PTFE gasket can be used to create a seal between the flanges and other components to prevent leaks and chemical corrosion.

Example 3: A High-Pressure Steam System

In a high-pressure steam system, ASME B16.5 Class 900 flanges can be used to connect alloy steel pipes, globe valves, and tees. The pipes can be ASTM A335 P11 alloy steel pipes with a nominal diameter of 8 inches. The globe valves can be ASME B16.34 Class 900 globe valves with flanged ends that match the dimensions of the ASME B16.5 flanges. The tees can be ASTM A420 WPL6 alloy steel tees with flanged ends that are compatible with the ASME B16.5 flanges. A graphite gasket can be used to create a seal between the flanges and other components to withstand the high pressure and temperature of the steam.

Conclusion

In conclusion, ASME B16.5 flanges are generally compatible with a wide range of other piping components, provided that the components are selected and installed correctly based on factors such as dimensions, pressure and temperature ratings, material compatibility, and gasket compatibility. As a supplier of ASME B16.5 flanges, I am committed to providing high-quality products and technical support to ensure the proper compatibility of our flanges with other piping components.

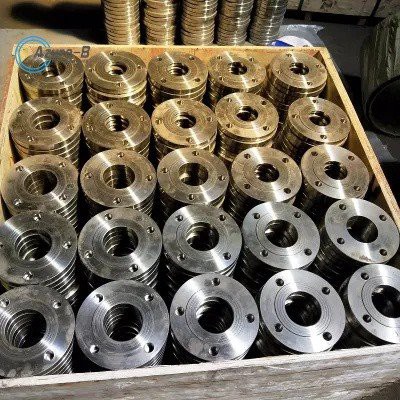

If you are in the market for ANSI B16.5 Class 2500 Flanges, Flanges As Per ASME B16.5, or ASME B16.5 Class 150 Forged Flanges, or if you have any questions regarding the compatibility of ASME B16.5 flanges with other piping components, please do not hesitate to contact us. We would be happy to assist you with your procurement needs and provide you with the best solutions for your piping systems.

References

• ASME B16.5 - Pipe Flanges and Flanged Fittings
• ASTM Standards for Pipes, Valves, and Fittings
• Manufacturer's Catalogs and Technical Data Sheets
